Resistance1k；2k；3k；5k；10k；15k；20k；50k；100k
-
B value3435k；3950k；3380k；3470k；Customized
-
Tolerance±1%；±2%；±3%；±5%
-
Temperature Range-50~250℃
-
Cable MaterialCP；Enameled
-
Head MaterialEpoxy Resin
-
Cable LengthCustomized
| Model Number | MF52C |

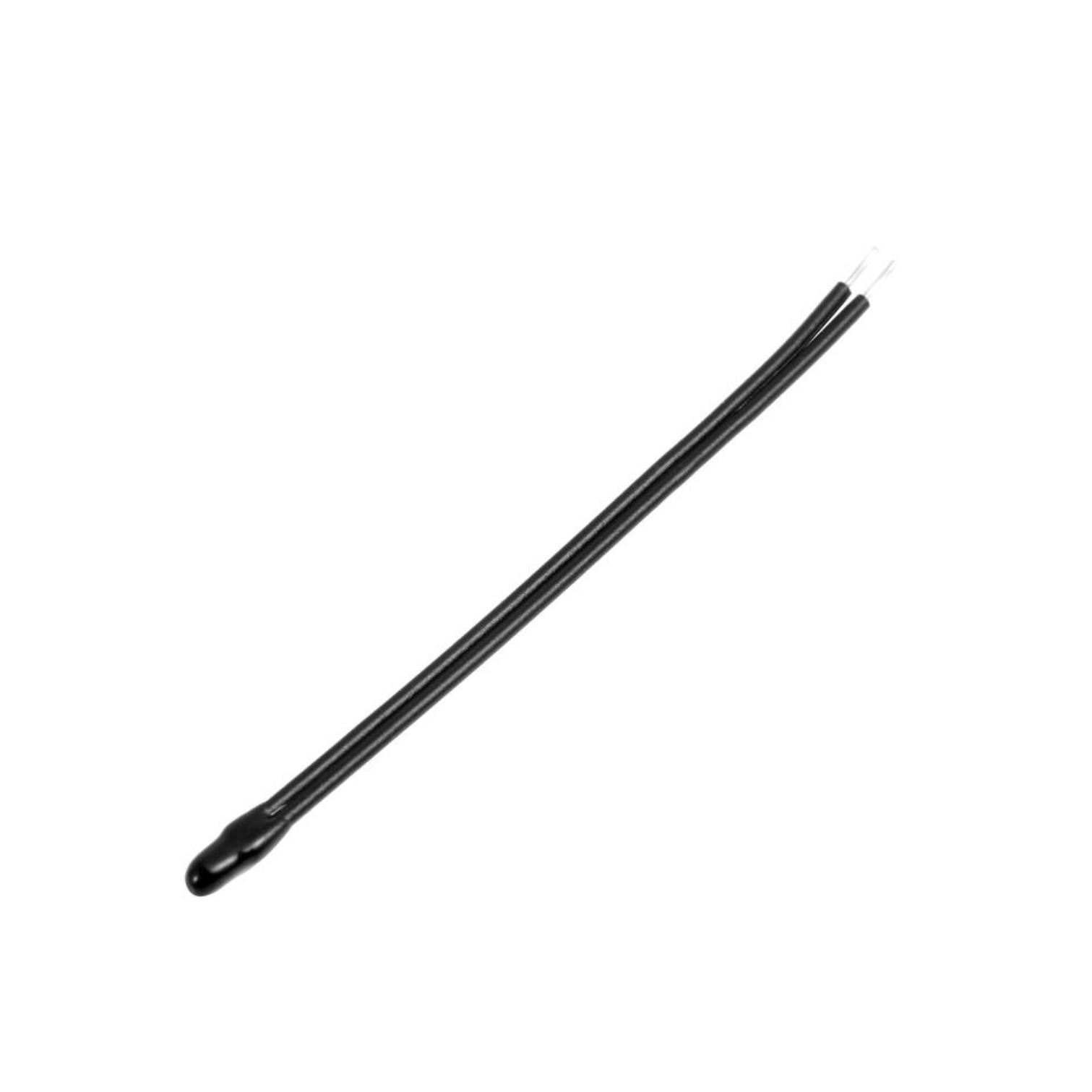

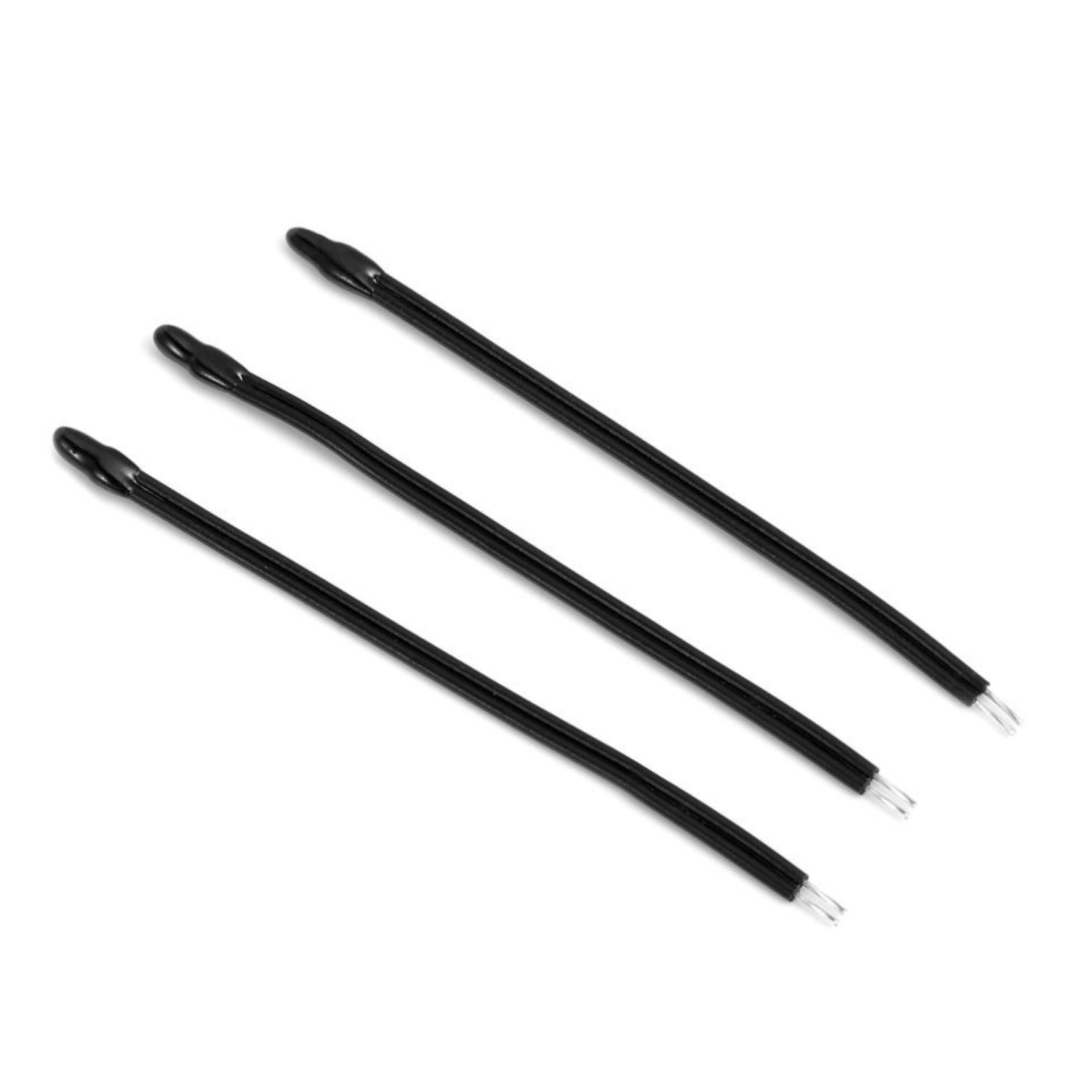

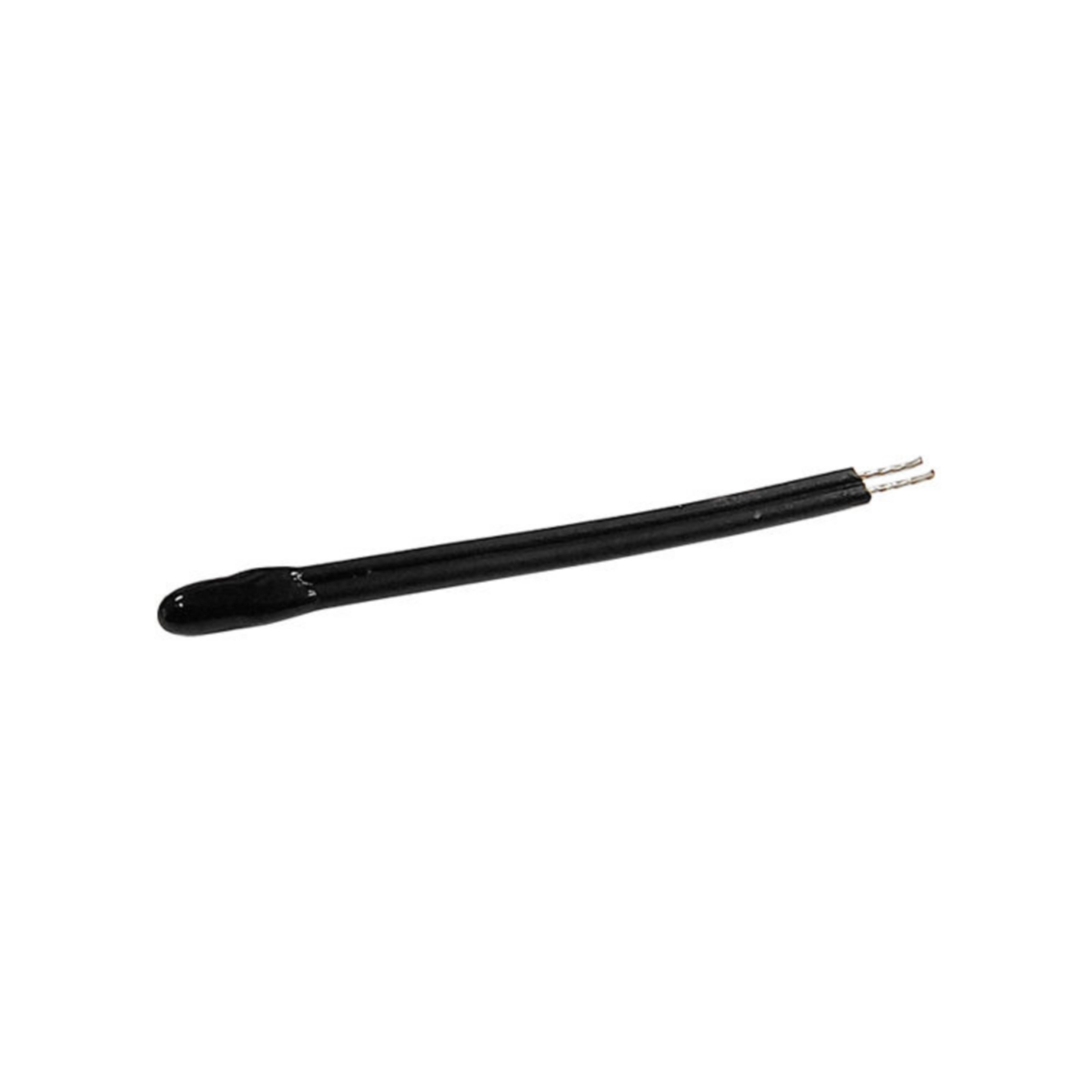

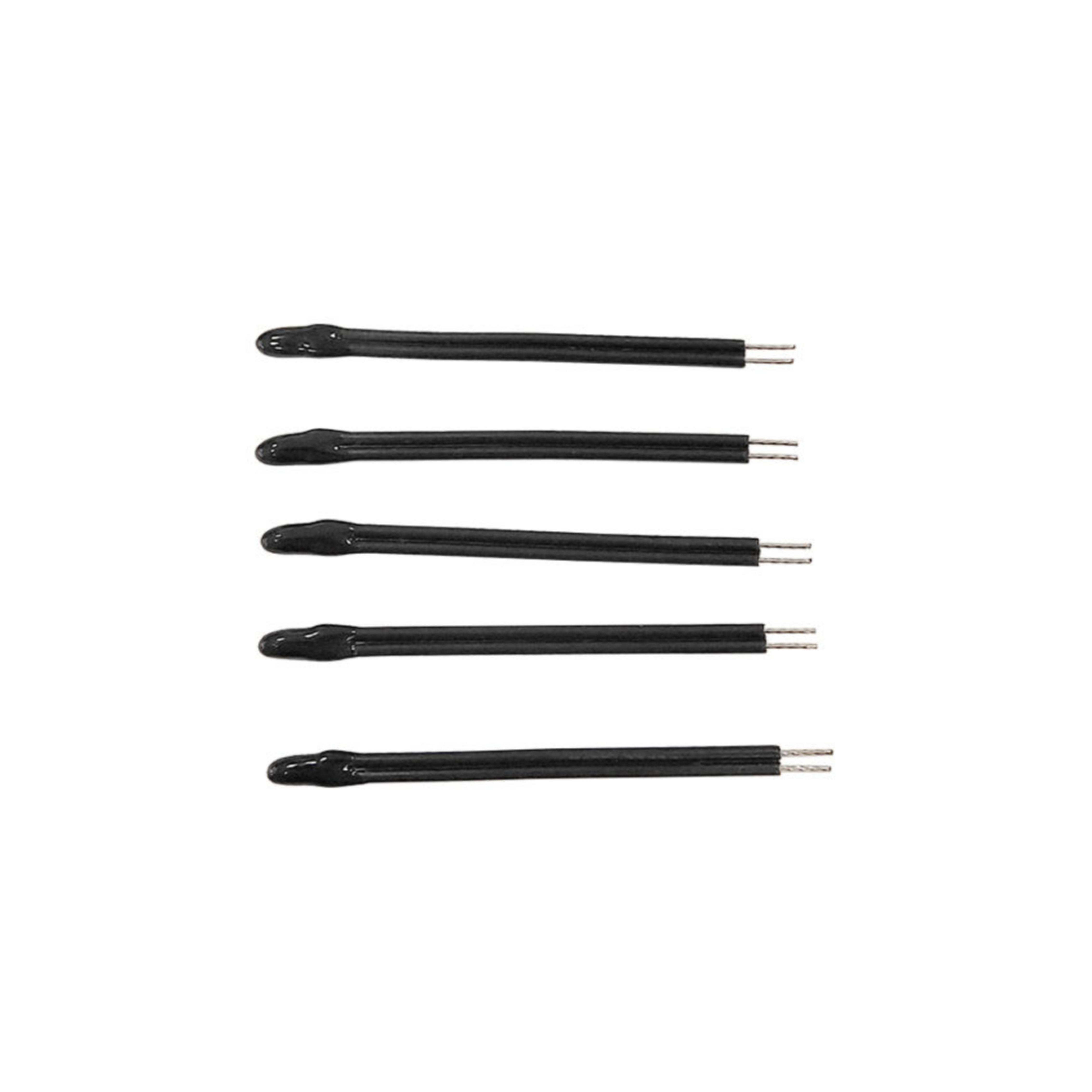

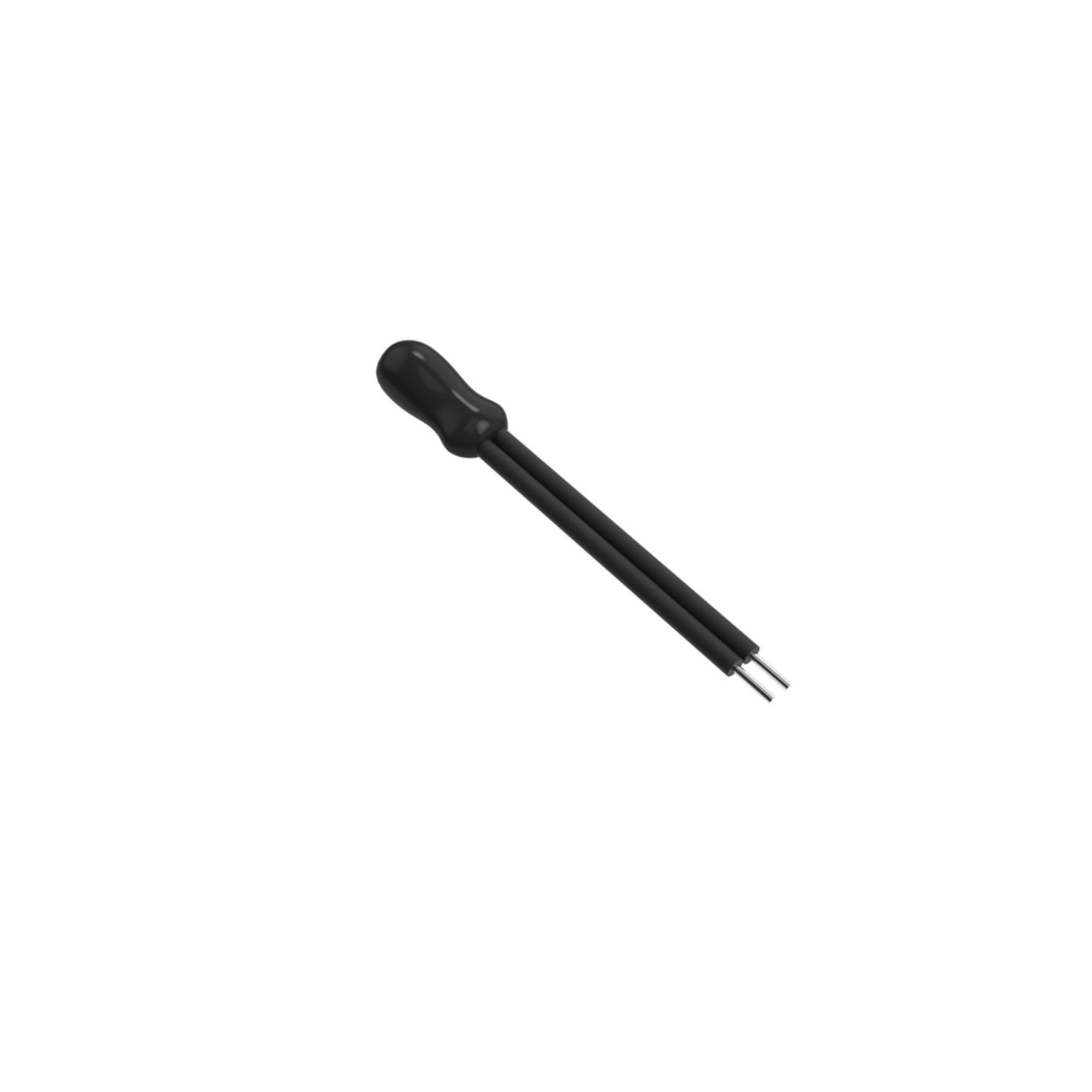

| Appearance Description | Epoxy NTC thermisor CP wire |
| Features |
1. Small size, Fast response, High sensitivity. 2. High accuracy, tolerance ±0.5% ±1% 3. Excellent thermal cycle endurance. 4. High stability. 5. Operating ranges -40℃ ~ +105℃. 6. Length can be customized. 7. Lead-wire material: XLPE/PTFE |
| Application | Onboard sensing (PCBA) ：Temperature Sensing, Temperature Control, Temperature measurement,Temperature Detector |
| Electrical Characteristics |
Thermal dissipation Coefficient ≥ 2mW/℃ (in still air) Thermal time constant ≤7s (in still air) Insulation resistance ≥100 MΩ (100V/DC 1min) Maximum rated power 50 mW Resistance@25℃: Optional Bata value(B25/50 B25/85): Optional |
| Place of Origi | Guangdong, China |
| Warranty period | 5 Years |
