Resistance1k；2k；3k；5k；10k；15k；20k；50k；100k
-
B value3435k；3950k；3380k；3470k；3977K
-
Tolerance±1%；±2%；±3%；±5%
-
Temperature Range-50~250℃
-
Head MaterialAluminum；Copper；Stainless-Steel；ABS
-
Cable MaterialXLPE；PTFE；PVC；CP；Iron
-
Cable Length100mm；200mm；Customized

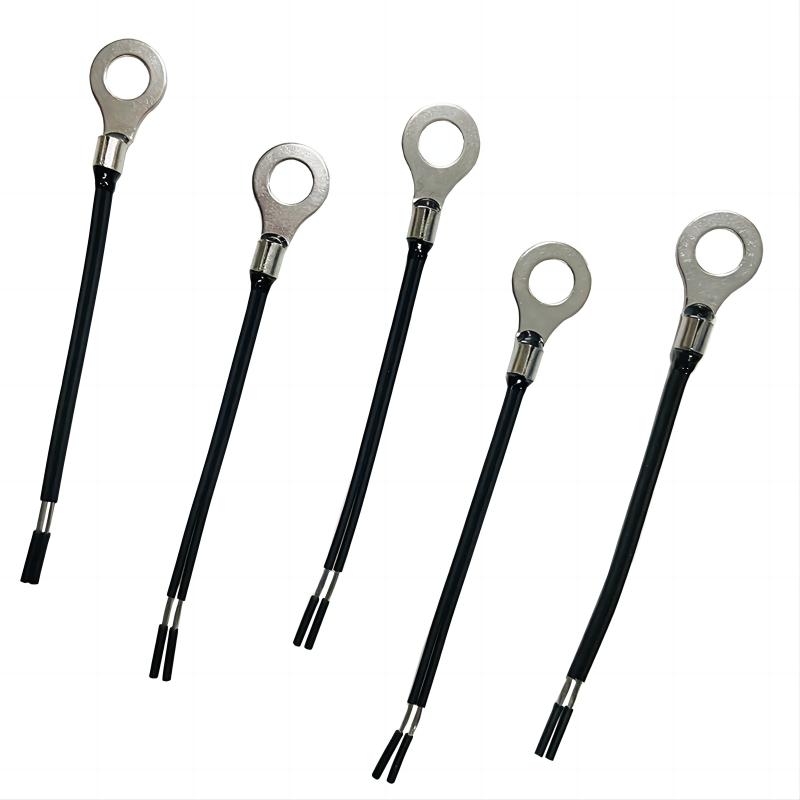

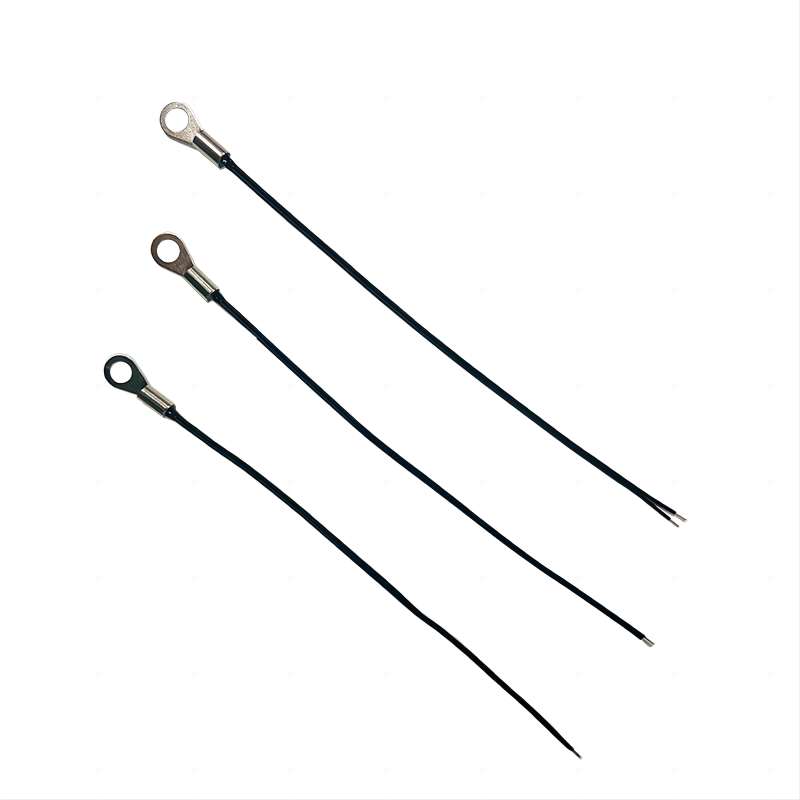

| Model Number | lug sensors |
| Appearance Description | Epoxy NTC thermisor temperature sensors |
| Features |
1. Small size, Fast response, High sensitivity. 2. High accuracy, tolerance ±1% 3. Excellent thermal cycle endurance. 4. High stability. 5. Operating ranges -50℃ ~ +250℃. 6. Length can be customized. 7. Lead-wire material: XLPE/PTFE/PVC |
| Application |
- Consumer appliances, Commercial appliances, Home Appliances - coffer maker, tea maker, water bolier, induction cooker - Power:Battery, Supercapacitor, Energy Storage Systems, Uninterruptible Power Supply, BMS(Battery Management System) - Car, Automobiles, Motors - Intake/exhaust temperatures, Mission oil - Internet of Things (IoT) - Foodservice equipment |
| Electrical Characteristics |
Thermal dissipation Coefficient ≥ 2mW/℃ (in still air) Thermal time constant ≤7s (in still air) Insulation resistance ≥100 MΩ (100V/DC 1min) Maximum rated power 50 mW Resistance@25℃: Optional Bata value(B25/50 B25/85): Optional |
| Place of Origi | Guangdong, China |
| Warranty period | 5 Years |
