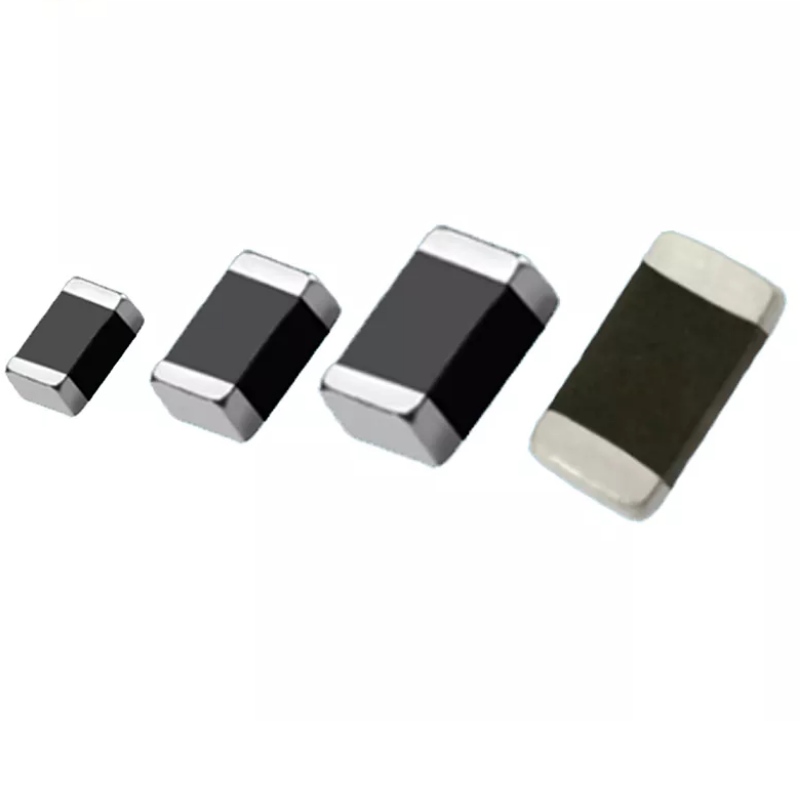

| Model Number | SMD NTC thermistor |
| Appearance Description | SMD NTC thermistor |
| Features |
1. Small size, Fast response, High sensitivity. 2. High accuracy, tolerance ±1% 3. Excellent thermal cycle endurance. 4. High stability. 5. Operating ranges -40℃ ~ +105℃. |
| Application | Onboard sensing (PCBA) ：Temperature Sensing, Temperature Control, Temperature measurement,Temperature Detector |
| Electrical Characteristics |
Thermal dissipation Coefficient ≥ 2mW/℃ (in still air) Thermal time constant ≤7s (in still air) Insulation resistance ≥100 MΩ (100V/DC 1min) Maximum rated power 50 mW Resistance@25℃: Optional Bata value(B25/50 B25/85): Optional |
| Place of Origi | Guangdong, China |
| Warranty period | 5 Years |
